Chemical Composition Element Content (wt. %) C ≤0.030 Si ≤1.00 Mn ≤2.00 P ≤0.030 S ≤0.020 Cr 22.0–23.0 Ni 4.5–6.5 Mo 3.0–3.5 N 0.14–0.20 Other Fe: Balance

Mechanical Properties Condition Tensile Strength Yield Strength (0.2%) Elongation Hardness Solution annealed ≥655 ≥450 ≥25 ≤293 HB / ≤31 HRB

Oil and gas piping Desalination plants Marine systems Chemical processing Pressure vessels Heat exchangers

Chemical Composition Element Content (wt. %) C ≤0.030 Si ≤1.00 Mn ≤2.00 P ≤0.030 S ≤0.020 Cr 22.0–23.0 Ni 4.5–6.5 Mo 3.0–3.5 N 0.14–0.20 Other Fe: Balance

Mechanical Properties Condition Tensile Strength Yield Strength (0.2%) Elongation Hardness Solution annealed ≥655 ≥450 ≥25 ≤293 HB / ≤31 HRB

Oil and gas piping Desalination plants Marine systems Chemical processing Pressure vessels Heat exchangers

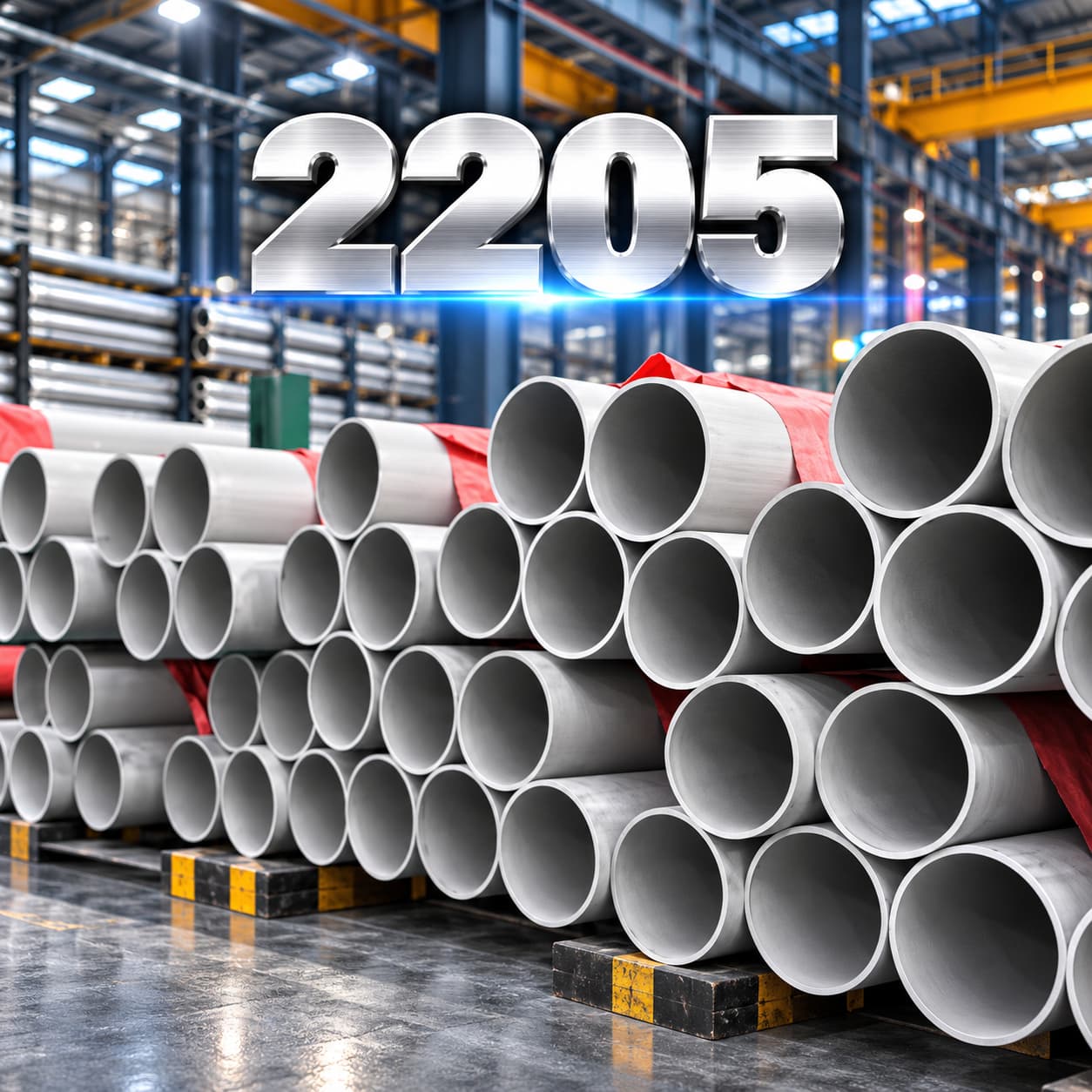

2205 Stainless Steel Welded Pipe

Grade: 2205/UNS S32205/UNS S31803/W.Nr.1.4462

Size: 12mm*0.5mm-2000mm*100mm

Length: 1000mm-12000mm

Standard: ASTM A312, ASTM A269, ASTM A790, ASTM A789 etc.

Surface: No.1(Pickling), Bright(Polished)

2205 Stainless Steel Pipe is a widely used duplex grade combining high mechanical strength with excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. Its balanced austenitic-ferritic microstructure provides a strong performance-to-weight ratio. 2205 pipe is commonly selected for oil and gas, chemical processing, marine, desalination, pressure equipment, and industrial piping exposed to chloride-containing environments.

Chemical Composition
